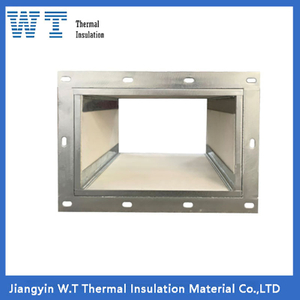

Air conditioning duct plate
WT
W.T Color Steel Laminated Phenolic Foam Insulation Board is a high-tech composite insulation material. The product was improved on the basis of Aluminium Foil Laminated Phenolic Foam Insulation Board, the outer aluminum foil is replaced into color steel,or replace two sides, greatly enhanced the strength of the product make the product more solid,and our steel color is variety,according to the customer's actual use, match with the right color makes the environment more harmonious and beautiful. W.T Single Side Color Steel Laminated Phenolic Foam Insulation Board and W.T Double Side Color Steel Laminated Phenolic Foam Insulation Board are very strong and durable, appearance is more fashion: White,black, blue and other colors can be customized accordingto customerrequirements.
ITEM | INDEX | ITEM | INDEX |
Conventional thickness | 20mm, 25mm, 30mm | Bending strength | ≥1.1 MPa |
Length/Width (mm) | 2000x1200, 3000x1200, 4000x1200 | Leakage air volume | ≤ 1.2% |
Fireproof rating | A2 | Thermal resistance | 0.86 m2K/W |
Density of core material | 60-70kg/m3 | Smoke density | ≤9, no toxic gas release |
Water absorption | ≤3.7% | Dimension stability | ≤2% (70±2℃, 48h) |
Thermal conductivity | 0.019-0.02 W(mK) | Oxygen index | ≥45 |
Heat resistance | -150 ~ +150℃ | Duration of fire resistance | >1.5h |
Wind resistance strength | ≤1500 Pa | Formaldehyde Emission | ≤0.5Mg/L |
Compression strength | ≥0.18 MPa | Air flow max | 15M/s |
W.T Color Steel Laminated Phenolic Foam Insulation Board is a high-tech composite insulation material. The product was improved on the basis of Aluminium Foil Laminated Phenolic Foam Insulation Board, the outer aluminum foil is replaced into color steel,or replace two sides, greatly enhanced the strength of the product make the product more solid,and our steel color is variety,according to the customer's actual use, match with the right color makes the environment more harmonious and beautiful. W.T Single Side Color Steel Laminated Phenolic Foam Insulation Board and W.T Double Side Color Steel Laminated Phenolic Foam Insulation Board are very strong and durable, appearance is more fashion: White,black, blue and other colors can be customized accordingto customerrequirements.
ITEM | INDEX | ITEM | INDEX |
Conventional thickness | 20mm, 25mm, 30mm | Bending strength | ≥1.1 MPa |
Length/Width (mm) | 2000x1200, 3000x1200, 4000x1200 | Leakage air volume | ≤ 1.2% |
Fireproof rating | A2 | Thermal resistance | 0.86 m2K/W |
Density of core material | 60-70kg/m3 | Smoke density | ≤9, no toxic gas release |
Water absorption | ≤3.7% | Dimension stability | ≤2% (70±2℃, 48h) |
Thermal conductivity | 0.019-0.02 W(mK) | Oxygen index | ≥45 |
Heat resistance | -150 ~ +150℃ | Duration of fire resistance | >1.5h |
Wind resistance strength | ≤1500 Pa | Formaldehyde Emission | ≤0.5Mg/L |
Compression strength | ≥0.18 MPa | Air flow max | 15M/s |
