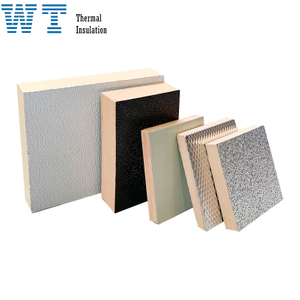

Phenolic exterior wall panel
Introducing our Phenolic Insulation Board, a closed-cell rigid foam plastic made from phenolic resin, flame retardants, smoke suppressants, curing agents, foaming agents, and other additives. This product boasts outstanding fire resistance and insulation properties, making it an ideal choice for a variety of applications.
To enhance its durability and aesthetics, we have embossed the aluminum foil surface with a stylish orange peel pattern. This not only adds a touch of elegance to the product, but also increases its hardness and provides a diffuse reflection effect.
Our Phenolic Insulation Board is widely used in cold storage, kitchen cabinets, luggage, air conditioning shells, aluminum products, roofs, wall decorations, insulation boards, ventilation, and more. With its superior performance and versatility, it is a must-have for any construction or renovation project. Trust in our product to provide you with the best in fire safety and insulation.
Inspection Items | Technology Index | Inspection Items | Technology Index |
Conventional thickness | 30-220mm | Bending strength | ≥1.1 MPa |
Length/Width (mm) | 2000x1200, 3000x1200, 4000x1200 | Leakage air volume | ≤ 1.2% |
Fireproof rating | A2 | Thermal resistance | 0.86 m2K/W |
Density of core material | 60-70kg/m3 | Smoke density | ≤9, no toxic gas release |
Water absorption | ≤3.7% | Dimension stability | ≤2% (70±2℃, 48h) |
Thermal conductivity | 0.19-0.02 W(mK) | Oxygen index | ≥45 |
Heat resistance | -150 ~ +150℃ | Duration of fire resistance | >1.5h |
Air flow max | 15M/s | Formaldehyde Emission | ≤0.5Mg/L |
Compression strength | ≥0.18 MPa |
Introducing our Phenolic Insulation Board, a closed-cell rigid foam plastic made from phenolic resin, flame retardants, smoke suppressants, curing agents, foaming agents, and other additives. This product boasts outstanding fire resistance and insulation properties, making it an ideal choice for a variety of applications.
To enhance its durability and aesthetics, we have embossed the aluminum foil surface with a stylish orange peel pattern. This not only adds a touch of elegance to the product, but also increases its hardness and provides a diffuse reflection effect.
Our Phenolic Insulation Board is widely used in cold storage, kitchen cabinets, luggage, air conditioning shells, aluminum products, roofs, wall decorations, insulation boards, ventilation, and more. With its superior performance and versatility, it is a must-have for any construction or renovation project. Trust in our product to provide you with the best in fire safety and insulation.
Inspection Items | Technology Index | Inspection Items | Technology Index |
Conventional thickness | 30-220mm | Bending strength | ≥1.1 MPa |
Length/Width (mm) | 2000x1200, 3000x1200, 4000x1200 | Leakage air volume | ≤ 1.2% |
Fireproof rating | A2 | Thermal resistance | 0.86 m2K/W |
Density of core material | 60-70kg/m3 | Smoke density | ≤9, no toxic gas release |
Water absorption | ≤3.7% | Dimension stability | ≤2% (70±2℃, 48h) |
Thermal conductivity | 0.19-0.02 W(mK) | Oxygen index | ≥45 |
Heat resistance | -150 ~ +150℃ | Duration of fire resistance | >1.5h |
Air flow max | 15M/s | Formaldehyde Emission | ≤0.5Mg/L |
Compression strength | ≥0.18 MPa |
