AL-HT2025
W.T

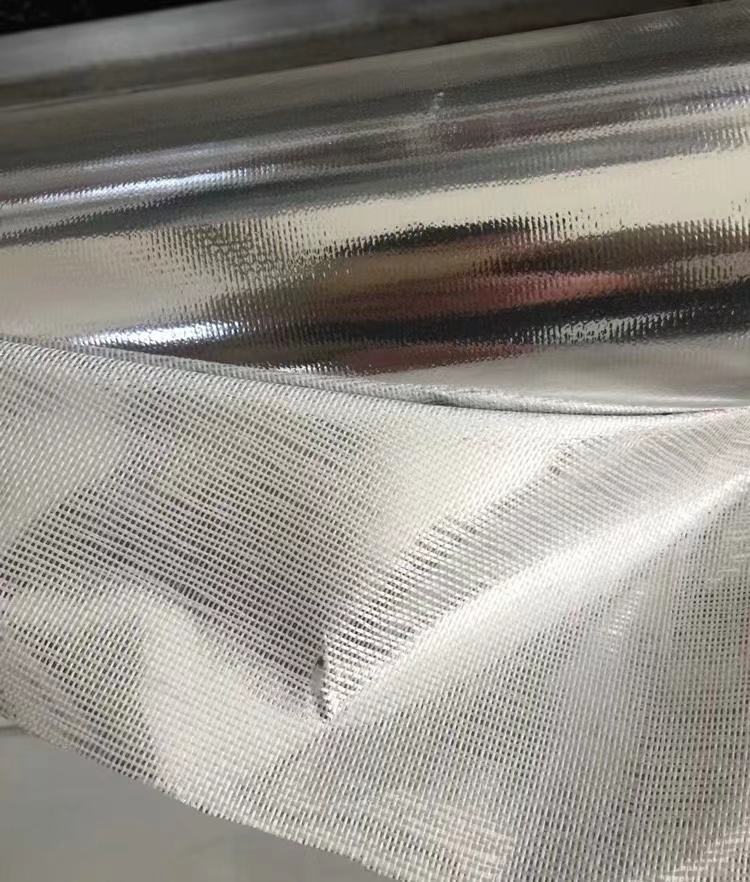

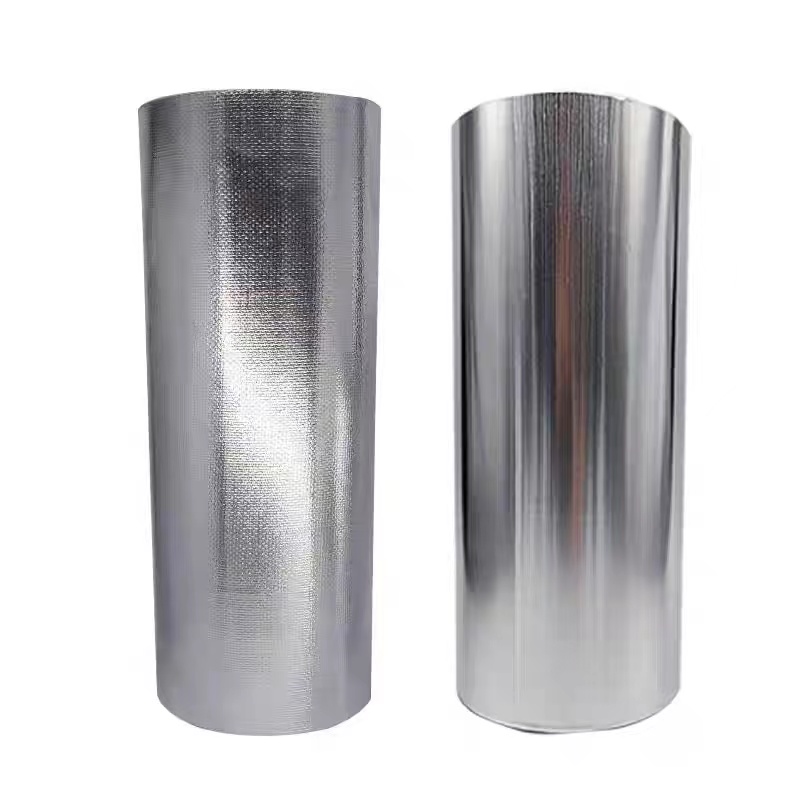

Product Description
Aluminum foil thickness: 7/14/18/25/36/50 micron
Coating: Aluminum foil/metalized film/F. R. aluminized
Fiberglass cloth type: Plain weave/twill weave
Fiberglass cloth weight: 95g/㎡, 110g/㎡, 200g/㎡, 430g/㎡,FW600, HT2025,HT3784,M24 ,M30 or as your requirement
Width: 1m,1.2m,1.3m,1.5m
Length: 50m, 100m
Data Sheet
AL-7628 | AL-3732 | AL-FW600 | AL-HT2025 | AL-3784 | AL-84215 | |
Weave | plain | 3x1 twill | even grain check | plain | 8 HS satin | plain |
Warp(per/cm) | 17.3 | 18 | 15 | 8 | 18 | 8 |
Weft(per/cm) | 12.5 | 13 | 15 | 5.7 | 13 | 6 |
Weight(g/㎡) | 200 | 430 | 600 | 610 | 880 | 300 |
Thickness(mm) | 0.2 | 0.43 | 0.55 | 0.75 | 0.9 | 0.38 |
Coating | Aluminum foil/Metalized film | |||||
Coating Thickness(micron) | 7/18/25 | |||||
Width(m) | 1/1.2/1.5 | |||||
Service temperature | fiberglass:550℃/while mucilage:300℃ | |||||
Application
Used as the thermal insulating materials of steam heating pipelines, sound -proof materials in construction and protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound absorbability.
Used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.
Used for wrapping materials of oil transportation pipelines and steam pipelines in petrochemical industry with the same effects as mentioned above.
Stocking & Packing
Packing Details:cartib&pallet
Lead Time:
| Quantity(Square meter） | 1 - 1000 | >10000 |
| Est. Time(day) | 7 | To be negotiated |
Certification
ISO 9001 ：Manufacture and after-sales of aluminum foil composite fiber cloth, XPS polystyrene plastic board, phenolic foam insulation board.
Our product have reached UL181, BS 476 Part 6 & Part 7 Class 0 by Exova Warringtonfire, and ASTM E84.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory&manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: What is your shipping port?
A: Normally Shanghai port , or according to customer's request.
